Iron Man (2007): Suit Up Sequence

Final keyframe and development sketches for Iron Man's suit-up sequence. Since principle photography had already finished, I was tasked with working out a sequence using existing plate photography of Tony Stark's workshop and minimal shots of Robert Downey Jr., as he had already wrapped shooting. ILM did a fantastic job of extrapolating from these rough sketches and singular keyframe to develop very believable robotics and an incredibly dynamic sequence that's one of the most memorable in the movie.

Phil saunders suitingupoverpaint web

Final post-vis paint-over of Tony's workshop plate photography.

Phil saunders suitingupkeys1

Suiting-up storyboards showing potential key shots in the suit-up sequence. (Pencil on vellum)

Phil saunders suitingupkeys2

Suiting-up storyboards showing potential key shots in the suit-up sequence.(Pencil on vellum)

Phil saunders suitingupkeys3

Suiting-up storyboards showing potential key shots in the suit-up sequence.(Pencil on vellum)

Phil saunders suitingupkeys4

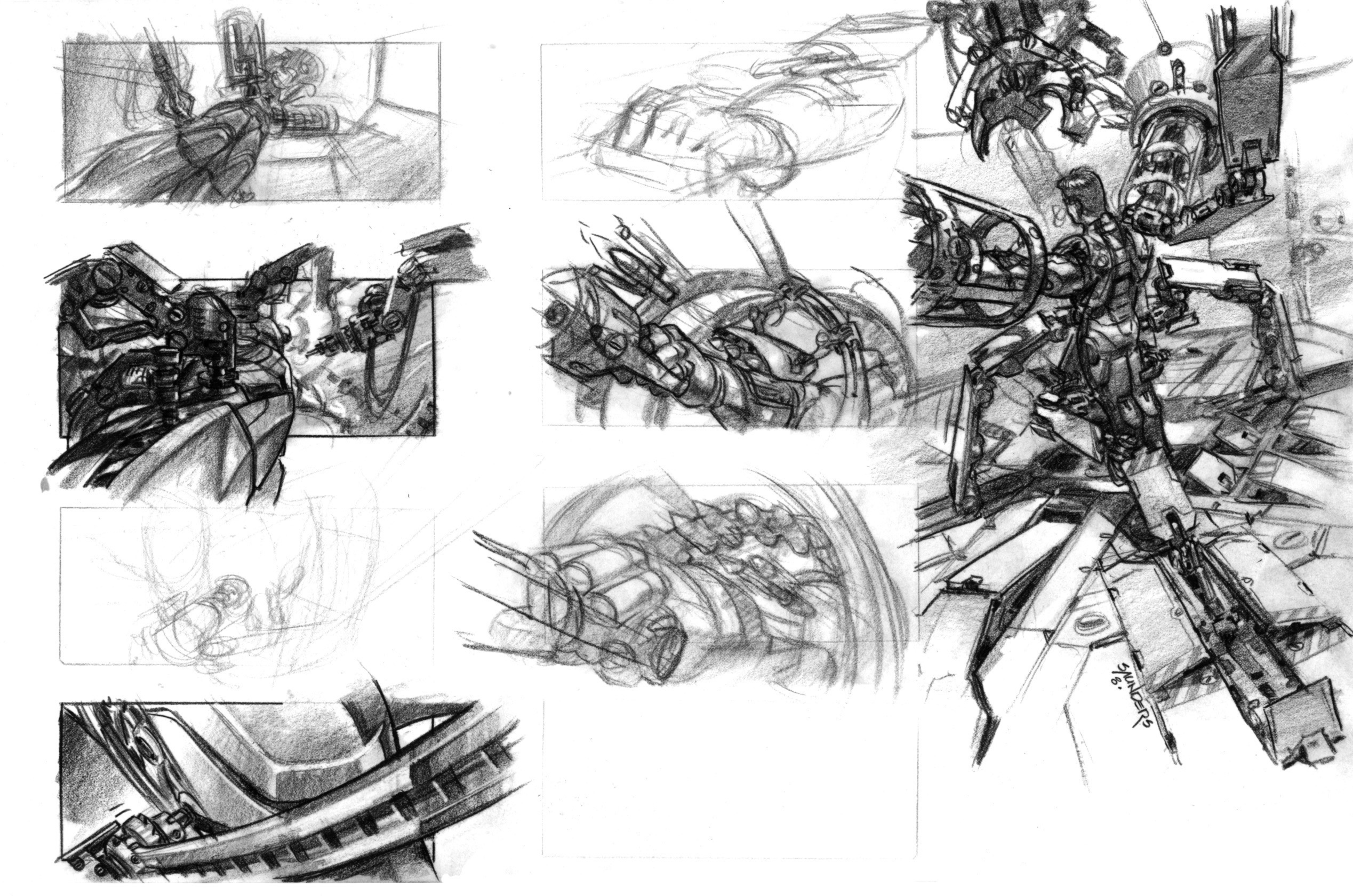

Suiting-up storyboards showing potential key shots in the suit-up sequence.(Pencil on vellum)

Phil saunders suit up sketch1

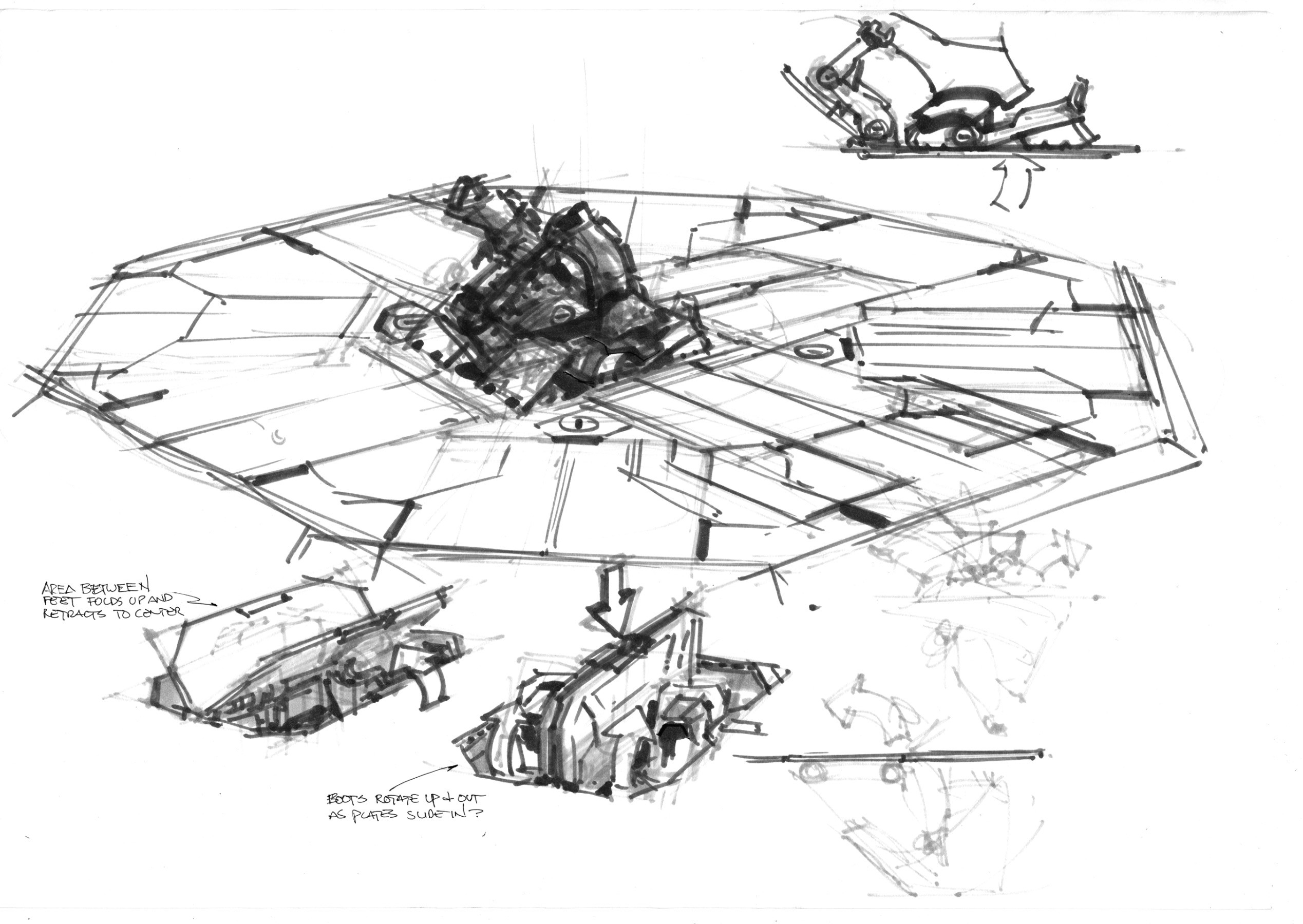

Concept sketch of the floor panel break-up (Marker)

Phil saunders suit up sketch3

More concepts for the floor panel break-up (Marker)

Phil saunders suit up sketch7

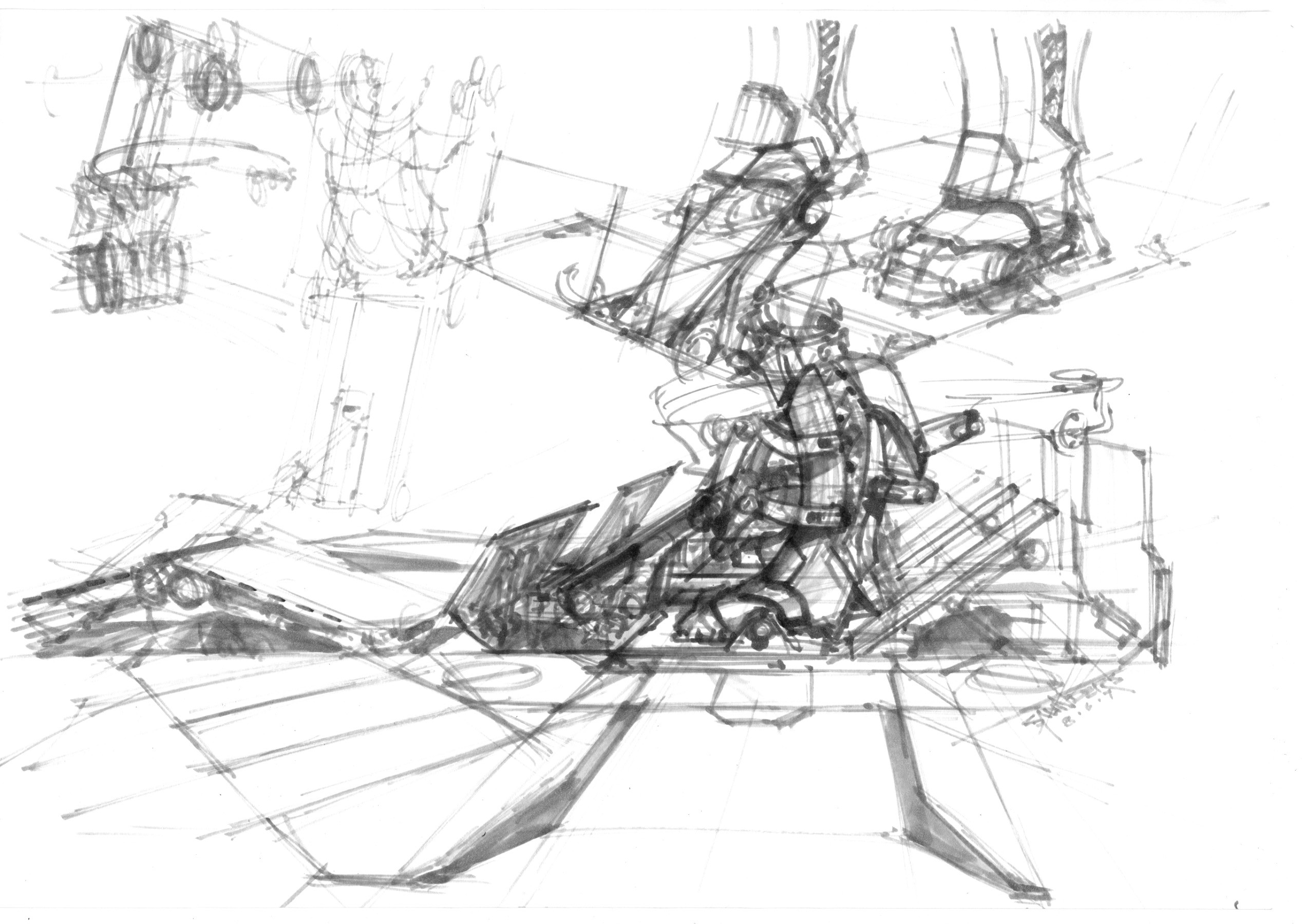

Working out how the panels would open around the boots (marker)

Phil saunders suit up sketch4

Building up the upper legs. Note how the floor panels are actually part of the robot arms. (Marker)

Phil saunders suit up sketch8

More boot securing greebly action. (marker)

Phil saunders suit up sketch9

Boot-tightening-bolt-driver-thingy. (marker)

Phil saunders suit up sketch10

Showing how the panels would break up into the robot arm. (marker)

Phil saunders suit up sketch6

Section showing how elements would be folded up under the floor. (Marker)

Phil saunders suit up sketch2

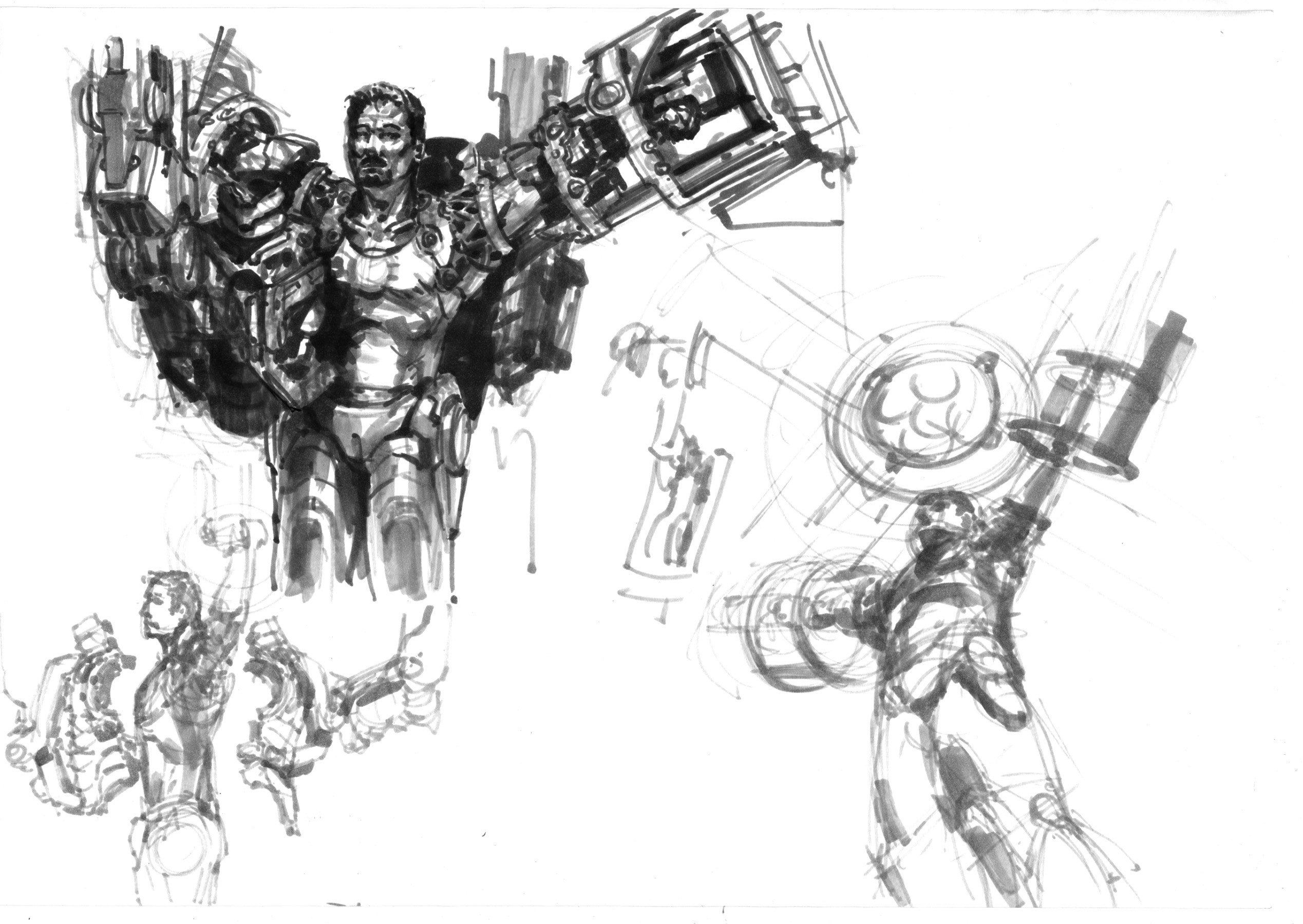

Torso attachment. (marker)

Phil saunders suit up sketch5

Torso and hip attachment. (Marker)

Phil saunders suit up sketch11

Hip attachment device. (Marker)

Phil saunders suit up sketch12

Hip attachment exploration.(Marker)
